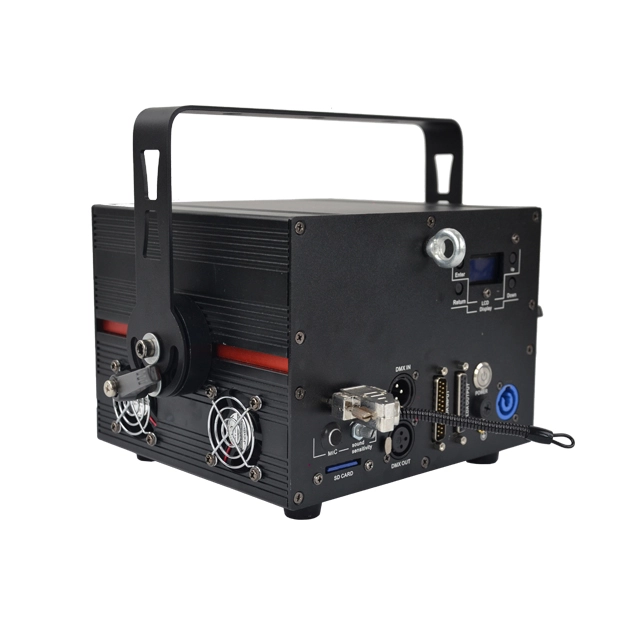

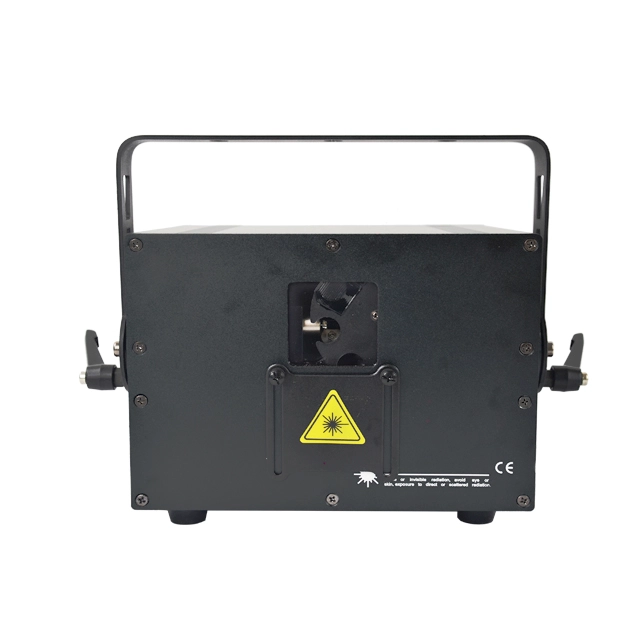

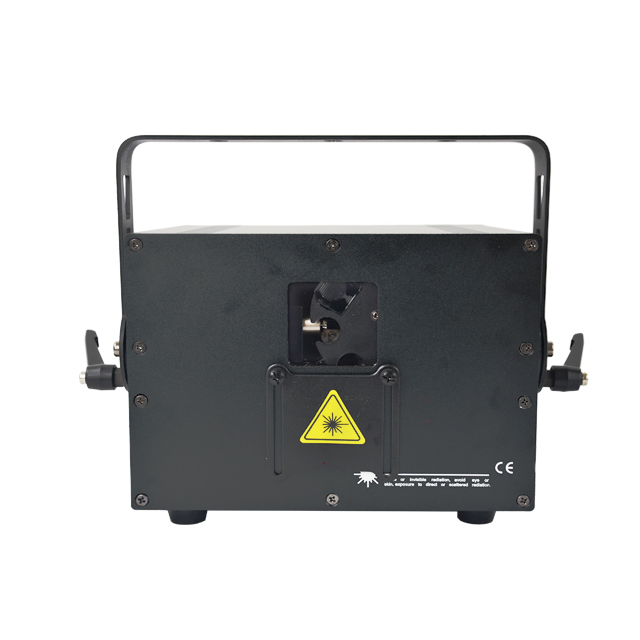

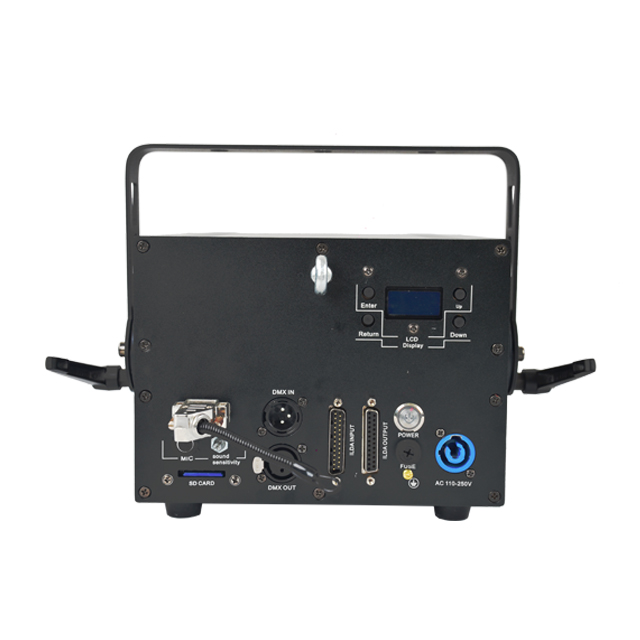

| The GAGA Laser RGB1w laser light comes with a completely new designed compact housing, which is light weight and has a stable bracket. The bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling. The RGB1w laser light is a full color RGB laser system with analog modulation and a total output power of up to 1'000 mw and a minimum output power of 1'000 mW. The red laser source at 637 nm has an output power of 180 mw, the green at 520 nm of 100 mw and the royal-blue laser source at a wavelength of 445 nm has an output power of 600 mW. The laser sources ensure brilliant colors and powerful laser beams. The projector has good beam specifications with a beam diameter of about 5 mm and beam divergence of 1.0 mrad. The galvo system has a scan speed of up to 30 kpps. Pattern size and the sensitivity of the microphone can be set by two rotary buttons on the rear side of the housing. Through DMX, in the automatic mode as well as in the sound-to-light mode about 200 preset patterns, like waves, tunnels, circles etc. can be projected in different colors and in various speed. If the automatic mode is active, the pre-programmed patterns run without assistance and in the music mode, the laser system projects according to the sound. Next to the modi mentioned above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector. The RGB1w laser light is computer controllable through a professional ILDA interface. Thus own or pre-programmed laser shows, logos, texts or own graphics and animations can be shown in combination with a laser control software. There are safety features like a key switch, an interlock interface and an on-off selection in LCD. Advantages of the RGB1w laser light are: a low-cost yet powerful solution for power demanding laser applications great for large nightclubs and medium sized stages brilliant colors with great linear color fading behavior ideal for long distance beam shows and basic graphics projections |
| Total Power typical: | 1'000 mw |
| Guaranteed power: | 1'000 mw |
| Power Red: | 180mw / 638nm |
| Power Green: | 100mw / 520nm |
| Power Blue: | 600mw / 450nm |
| Beam Specifications: | ca. 5 mm / 1.3 mrad |
| Laser Sources: | pure diode |
| Laser Class: | 4 |
| Operation Modes: | stand-alone, sound-to-light, DMX, ILDA, Master-Slave |
| Scanner: | galvo system, 25 kpps@8° |
| Scan Angle max.: | 60° |
| Basic Patterns: | ca. 200 (layers, tunnels, fences, waves, etc.) |
| Accessories: | power cable, manual,interclok connector |
| Power Supply: | 85V - 250 V AC ; 50/60Hz |
| Power Consumption: | 200w |
| Dimensions: | 34 * 23.5 * 17cm ( exinc. handle) |
| Weight: | 5kg |
| 1 step: package include folow items: ·〉RGB1w laser light with grating x 1 ·〉power wire x 1 ·〉user maual x 1 ·〉interclok connector x 1 |
 |
| 2 step: pack by foam |
|
| 3 step: put it in one fly case or carton box (1in1) |
|
| 4 step: carton package size: 37X32X27 cm gross weight: 8.0 KG |
Use Manual.pdf| GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System. |
|
 |
 |
 |
 |
 |
 |
 |
|
