RGB20w laser module

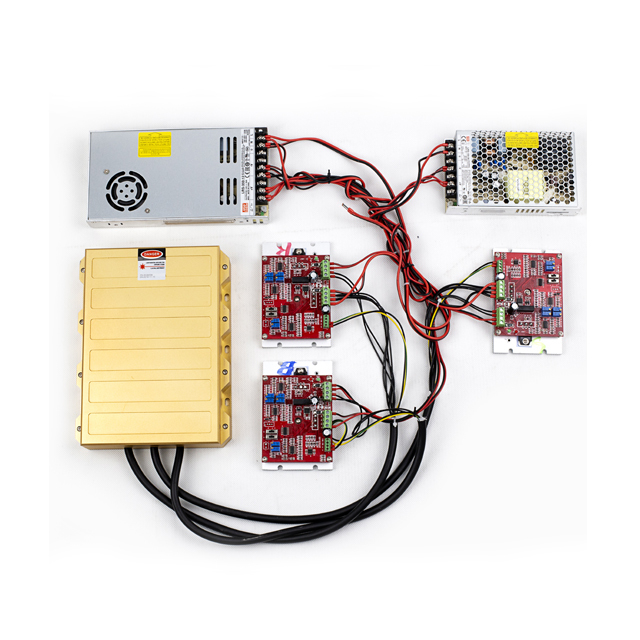

W20000 module with one power supply and three driver
(100 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Certificate
  • Packing
  • Download
  • Reviews
Note: When you feel the shipping cost is high, please submit the order, we will re-check the final shipping cost for you.

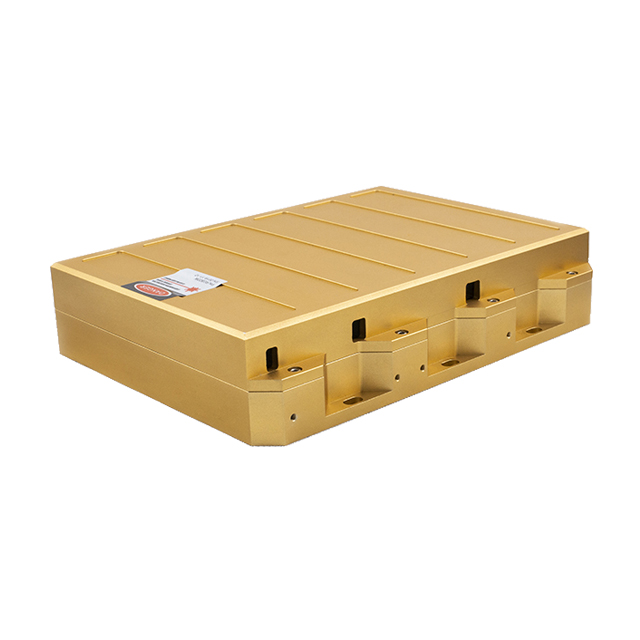

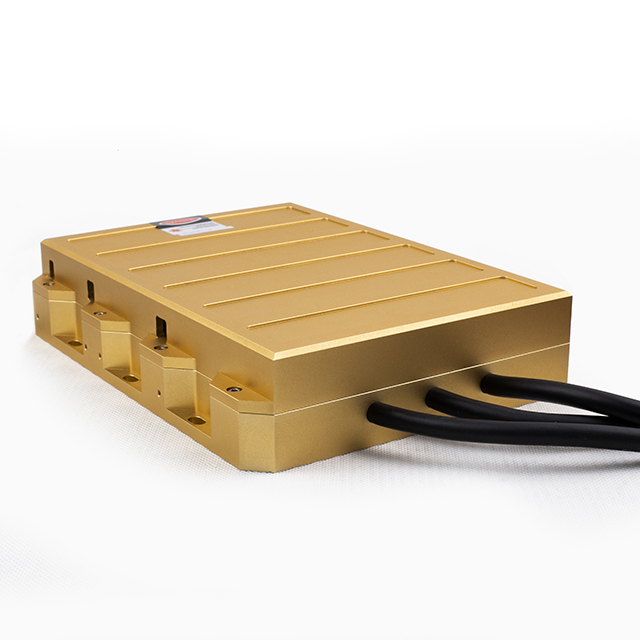

The GAGA's RGB20w laser module is with outside adjustable 3D holder, so you do not need to open the lid of module when there is any light move away. It is easy and convenient. The red source at 638nm has an output power of 6000mw; the green source at 520nm has an output power of 6000mw; the blue source at 450nm has an output power of 8000mw.
Produce name: RGB20w laser module
Guaranteed power: 20'800 mw
Power Red: 6000mw / 638nm
Power Green: 6000mw / 520nm
Power Blue: 8000mw / 450nm
Beam Specifications: ca. 3 mm x 6.5mm / 1.3 mrad
Input voltage: 24V
Dimensions: 226 * 176 * 48mm  ( exinc. driver)
Weight: 6kg  ( Inc. the driver and power supply)
GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System.

1 step:
  package include folow items:
   ·〉rgb20w laser module  x 1

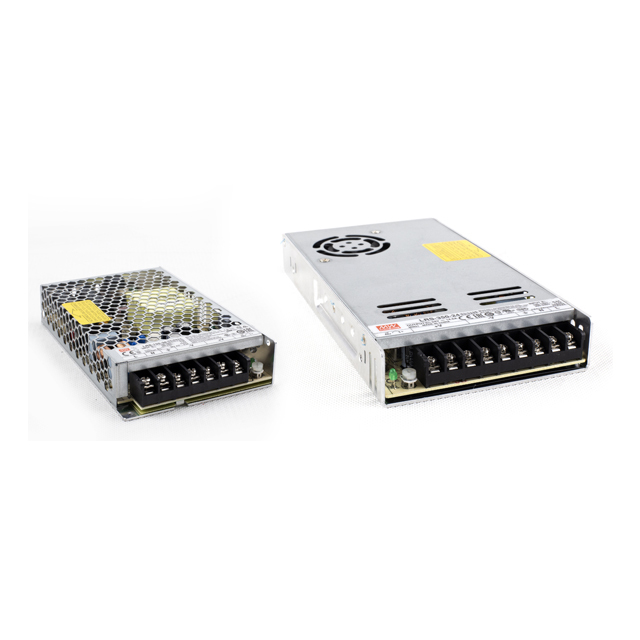

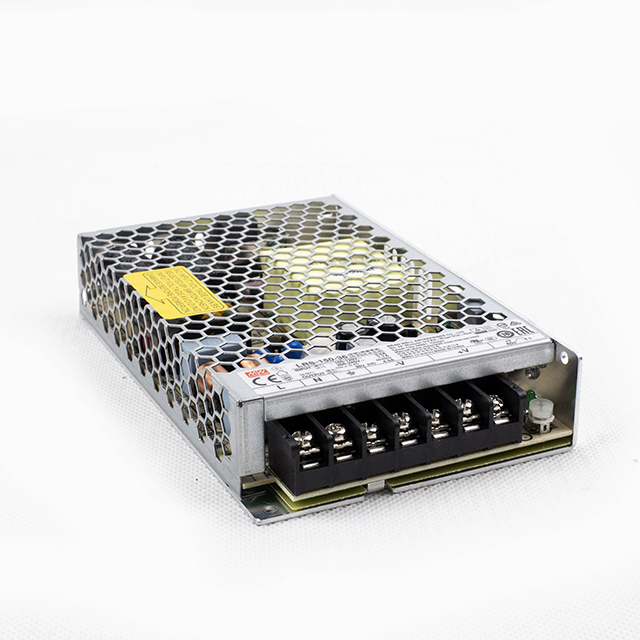

   ·〉power supply x 1
   ·〉driver x 3
2 step:
 pack by foam
3 step:
 put it in one carton box  (1in1)
4 step:
carton package size:
gross weight: 8.0 KG

Use Manual.pdf
