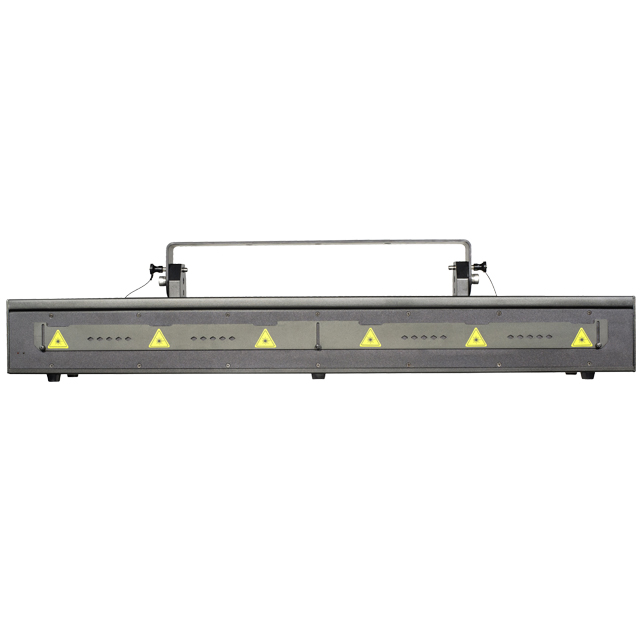

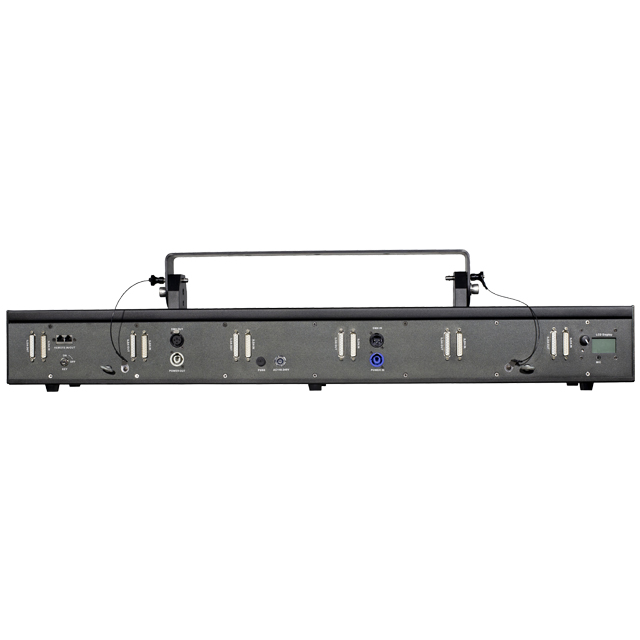

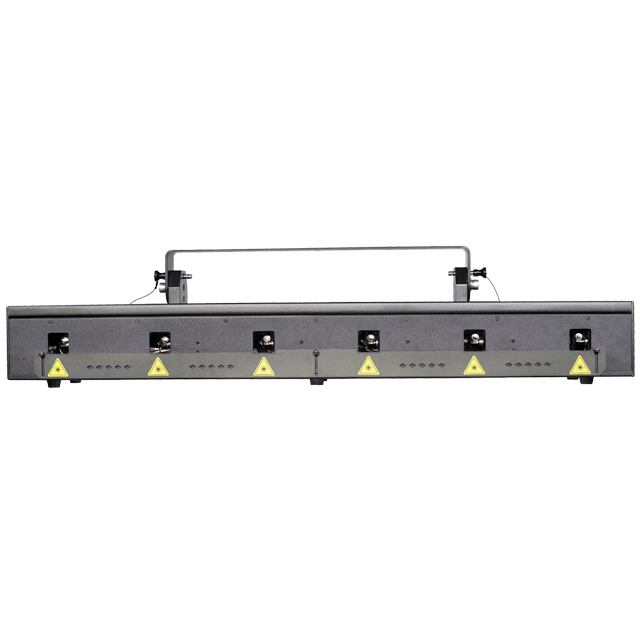

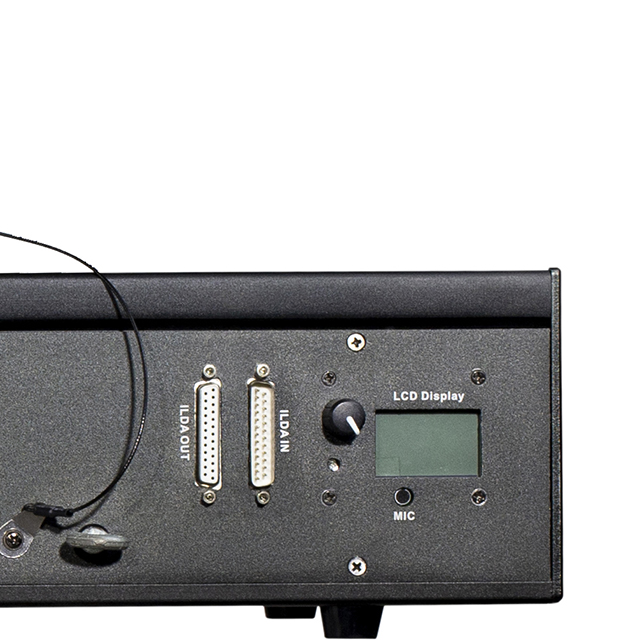

| The RGB12w laser beam bar is a whitelight RGB beam array with analog modulation and six beam outlets. It is controlled through DMX and ILDA thus is suitable for easy implementation to existing lighting setups. Each beam output comes with its own XY scan set with 25kpps@8° ILDA. Besides the single beam, the RGB12w laser beam bar offers 10 standard preset patterns like a square, a circle, a triangle and others which can be displayed by all six laser outputs. The RGB12w laser beam bar is equipped with 6 RGB laser diode modules. Each RGB module is balanced at a power of 500mW / 638 nm red, 500mW / 520 nm green and 1000mW / 450 nm blue for a brilliant white balance. Powers are measured after apertures and are balanced on manufacturing. The RGB12w laser beam bar is controlled via DMX thus it is possible to create many different chaser, beam and fan laser light effects. Most important settings can also be adjusted via integrated display. The beam array can easily be integrated into an existing lighting setup. A great visual effect for stages, live gigs, nightclubs, show productions and any event which requires a unique visual enhancement. |
| Model Number: | GA-B1-W12000 |
| Total Power typical: | 12'000 mw |
| Guaranteed power: | 11'800 mw |
| Power Red: | 500mw / 638nm x 6 |
| Power Green: | 500mw / 520nm x 6 |
| Power Blue: | 1000mw / 450nm x 6 |
| Beam Specifications: | ca. 4 mm / 1.3mrad |
| Laser Sources: | pure diode |
| Laser Class: | 4 |
| Operation Modes: | stand-alone, sound-to-light, DMX, ILDA, Master-Slave |
| Scanner: | galvo system, 20 kpps@8° |
| Scan Angle max.: | 60° |
| Basic Patterns: | ca. 10 (layers, tunnels, fences, waves, etc.) |
| Accessories: | power cable, manual,Interlock connector,key |
| Power Supply: | 85V - 250 V AC ; 50/60Hz |
| Power Consumption: | 250w |
| Dimensions: | 106 * 29 * 21cm ( exinc. handle) |
| Weight: | 18kg |
| 1 step: package include folow items: ·〉RGB12mw laser array x 1 ·〉power wire x 1 ·〉user maual x 1 ·〉interclok connector x 1 ·〉key x 1 |
 |
| 2 step: pack by foam |
|
| 3 step: put it in one fly case (2in1) size: 114 * 53 *43cm gross weight: 60kg |
 |
| GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System. |
|
 |
 |
 |
 |
 |
 |
 |
|
