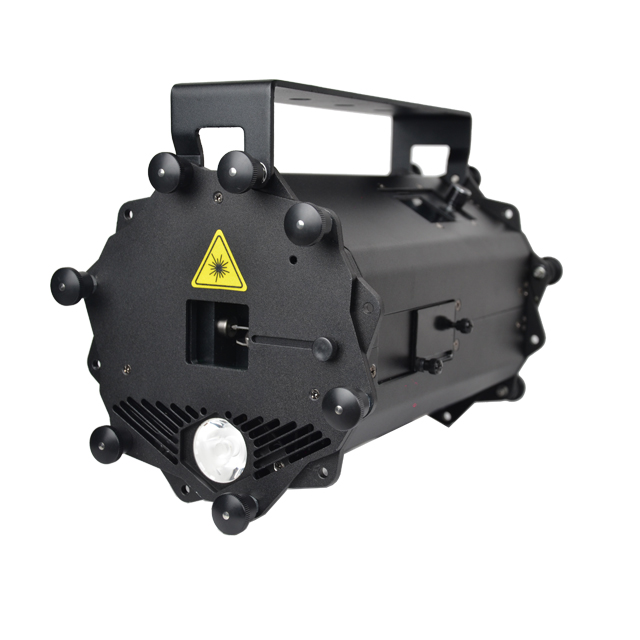

RGB2w splice laser light with small divergence

RGB2w splice laser light is with special structure, can link together umlimited from different of position.
  • scan:
  • Packing:
    Carton box
    Fly case
(560 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Video
  • Certificate
  • Packing
  • Download
  • Photos
  • Reviews
Note: When you feel the shipping cost is high, please submit the order, we will re-check the final shipping cost for you.

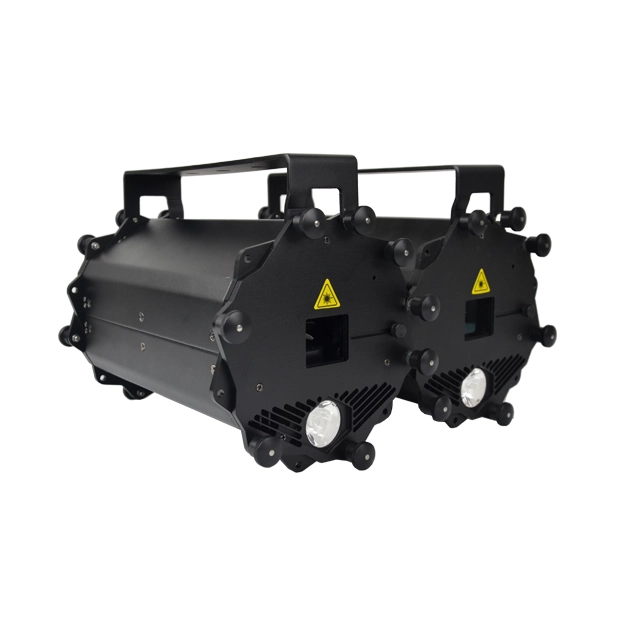

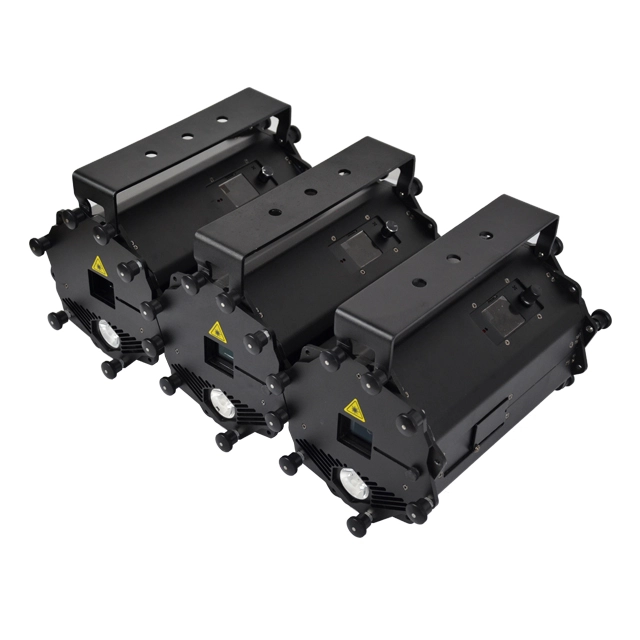

The GAGA Laser RGB2w splice laser light show laser projector is upgraded version of laser bar, comes with a completely new designed splice housing, which can link together umlimitd from different position. The bracket allows for different mounting positions: a hanging as well as a standing installation is possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations at a truss or at the ceiling.

The GAGA Laser RGB2w laser light is a full color RGB laser system with analog modulation and a total output power of up to 2'000 mw and a minimum output power of 1'600 mW. The red laser source at 637 nm has an output power of 340 mw, the green at 520 nm of 700 mw  and the royal-blue laser source at a wavelength of 445 nm has an output power of 1000 mW. The laser sources ensure brilliant colors and powerful laser beams. The projector has good beam specifications with a beam diameter of about 6 mm and beam divergence of 0.5mrad. The galvo system has a scan speed of up to 30 kpps. It is also with one 10W gold LED.

Pattern size and the sensitivity of the microphone can be set by LCD.

Through DMX, in the automatic mode as well as in the sound-to-light mode about 200 preset patterns, like waves, tunnels, circles etc. can be projected in different colors and in various speed. If the automatic mode is active, the pre-programmed patterns run without assistance and in the music mode, the laser system projects according to the sound.

Next to the modi mentioned  above, this laser projector provides a master-slave-mode. Show lasers of the same series (slave projectors), connected via DMX to a main projector (master projector) project the same patterns like the master projector.

The GAGA Laser RGB2w spice laser light is computer controllable through a professional ILDA interface. Thus own or pre-programmed laser shows, logos, texts or own graphics and animations can be shown in combination with a laser control software.

There are safety features like a key switch, an interlock interface and an on-off selection in LCD.

The GAGA Laser RGB2w spice laser light is ideal for semi-professional applications and is perfectly suitable in bars, medium sized clubs and discos as well as for rental companies, mobile DJs, private use and in any other party location.

Total Power typical: 2'000 mw
Guaranteed power: 2'000 mw
Power Red: 340mw / 637nm
Power Green: 700mw / 520nm
Power Blue: 1000mw / 450nm
Beam Specifications: ca. 6 mm / 0.5 mrad
Laser Sources: pure diode
Laser Class: 4
Operation Modes: stand-alone, sound-to-light, DMX, ILDA, Master-Slave
Scanner: galvo system, 30/40 kpps@8°
Scan Angle max.: 60°
Basic Patterns: ca. 200 (layers, tunnels, fences, waves, etc.)
Accessories: power cable, manual,interlock connector, key
Power Supply: 85V - 250 V AC ; 50/60Hz
Power Consumption: 200w
Dimensions: 31 * 18 * 18cm  ( exinc. handle)
Weight: 4.5kg
GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System.

1 step:
  package include folow items:
   ·〉rgb2000 splice laser light  x 1
   ·〉power wire x 1
   ·〉user maual x 1
   ·〉interlock connector x 1
   ·〉key x 1
2 step:
 pack by foam
3 step:
 put it in one fly case or carton box  (1in1)
4 step:
carton package size:
gross weight:

fly case package size:
gross weight:

Use Manual.pdf
