RGB8w laser module

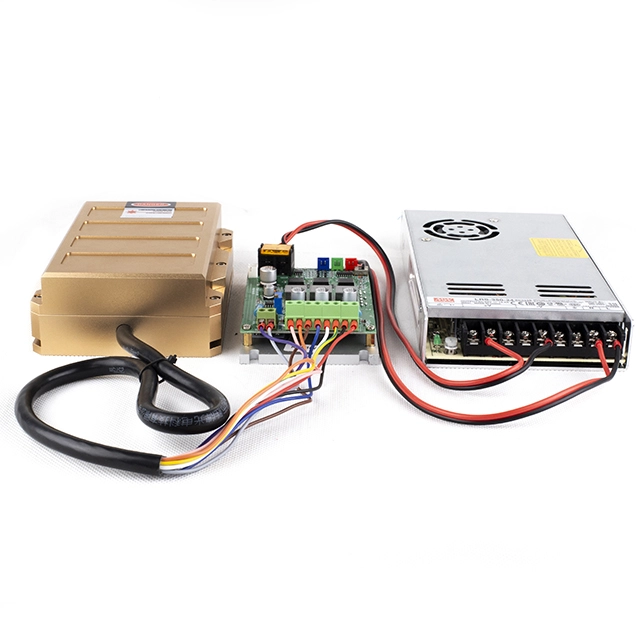

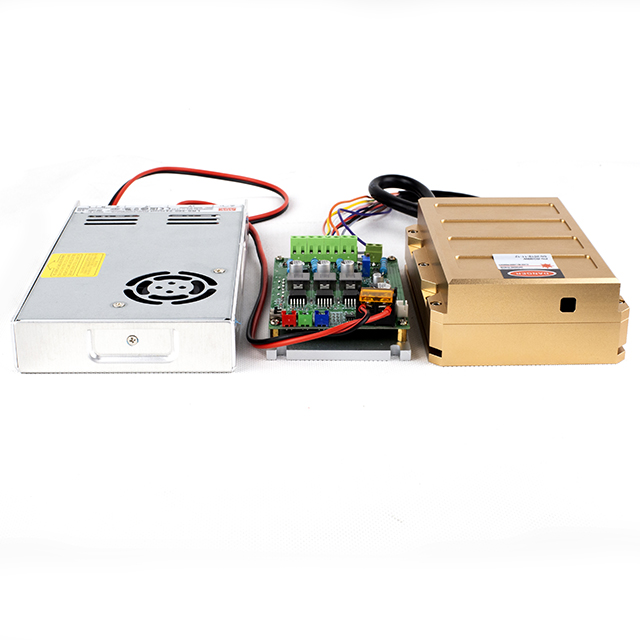

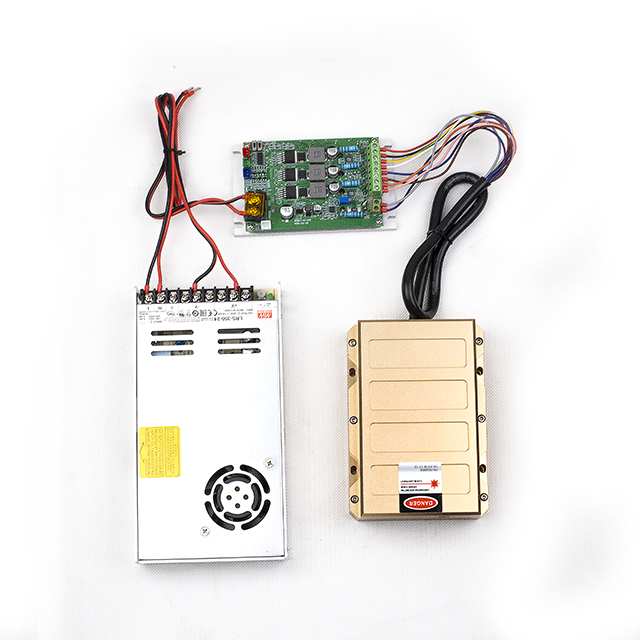

RGB8w laser module with one power supply and one driver
(100 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Video
  • Certificate
  • Packing
  • Download
  • Reviews
Note: When you feel the shipping cost is high, please submit the order, we will re-check the final shipping cost for you.

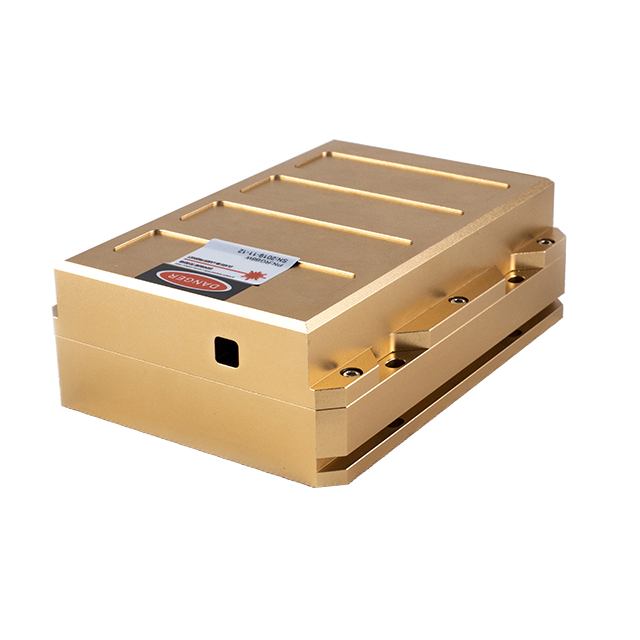

The GAGA's RGB8w laser module is with compact design and dustproof . The red source at 638nm has an output power of 2000mw; the green source at 520nm has an output power of 2000mw; the blue source at 450nm has an output power of 4000mw.
Produce name: RGB8w laser module
Guaranteed power: 8'100 mw
Power Red: 2000mw / 638nm
Power Green: 2000mw / 520nm
Power Blue: 4000mw / 450nm
Beam Specifications: ca. 7 mm x 8mm / 1.3 mrad
Input voltage: 24V
Dimensions: 140 * 106 * 44mm  ( exinc. driver)
Weight: 4.8kg  ( Inc. the driver and power supply)
GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System.

1 step:
  package include folow items:
   ·〉rgb8w laser module  x 1

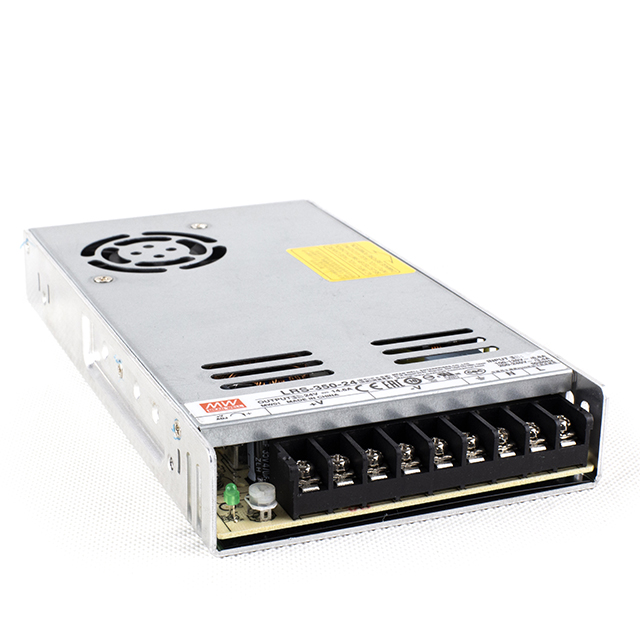

   ·〉power supply x 1
   ·〉driver x 1
2 step:
 pack by foam
3 step:
 put it in one carton box  (1in1)
4 step:
 put plastic box in carton box
carton package size:
gross weight: 4.8 KG

Use Manual.pdf
