Double Led co2 jet

0.0 (0)
0 Sold
$315.00 $0.00
Double Led co2 jet Product parameters:
1. Weight: 30.8 Lbs (pounds) (14 Kg)
2. DMX Channel: 6 Channels
3. Carton Dimensions: 460 mm x 410 mm x 520 mm
4. Control Mode: DMX 512
5. Pressure Rating: Up to 1400 psi (96 bar)
6. Power: 300 W
7. Voltage:
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
Availability: In Stock
  • Description
  • Packing
  • Download
  • Certificate
Product name: Double Led co2 jet

Product parameters:
1. Weight: 30.8 Lbs (pounds) (14 Kg)
2. DMX Channel: 6 Channels
3. Carton Dimensions: 460 mm x 410 mm x 520 mm
4. Control Mode: DMX 512
5. Pressure Rating: Up to 1400 psi (96 bar)
6. Power: 300 W
7. Voltage: 110 VAC 50/60 HZ (220 VAC Available)
8. Spray height:20'-30' Feet (8-12 meters) (depending on humidity)
9. LED Color: R/G/B/Mixed Color

DMX instruction:
DMX has 6 channels, see as following:
Channel 1: CO2 spray (0-255) ON.
Channel 2: LED in blue, (0-255) LED lights up gradually.
Channel 3: LED in green, (0-255) LED lights up gradually.
Channel 4: LED in red, (0-255) LED lights up gradually.
Channel 5: LED color mixing, (0-255) LED color mixes.
Channel 6: LED strobe, (0-255) getting faster.

Installs illustration:
1. Places the large CO2 column on the corresponding position
2. Connect the co2 hose to gas bottle
3. Put down the bottle and keep it flat
4. Connect the machine with the gas bottle via the hose, hose one side
connect with tank, the other side connect with the machine
5. Turn on the valve of the gas bottle
6. Connect the machine and the console.
7. Before disassembling, firstly turn off the bottle valve, let out the gas
which remain in the pipe, then turn off the power, lastly separate the
connector of the gas bottle.

Operation method:
DMX512 signal control: Press to the “DMX” switch, there has 6
channels under the DMX512 signal environment. After connect the
DMX512 console, push the first switch will Continue for 1 second CO2
column; push the first switch always , will continue for C02 column.
Channel 2-channel 6 control the LED color & Strobe



1 step:

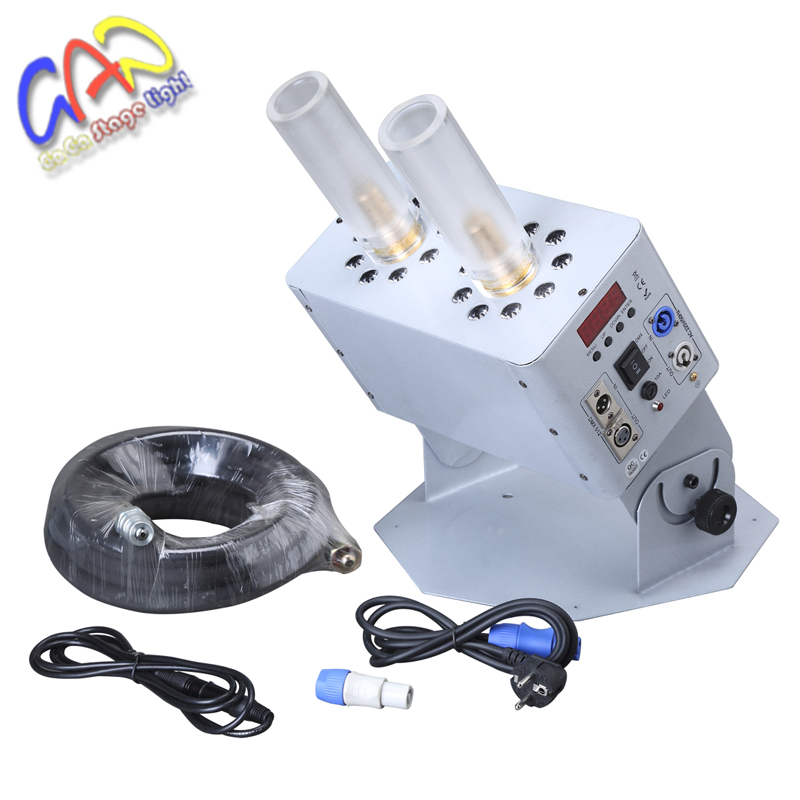

  package include folow items:
   ·〉Led co2 jet  x 1
   ·〉6meter Co2 hose x 1
   ·〉user maual x 1

2 step:
 pack by foam

3 step:
 put it in one carton box

carton package size: 46X41X52 CM
gross weight: 14 KG
GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System.
